Rogers Data Scandinavia VFR ICAO Chart 500k

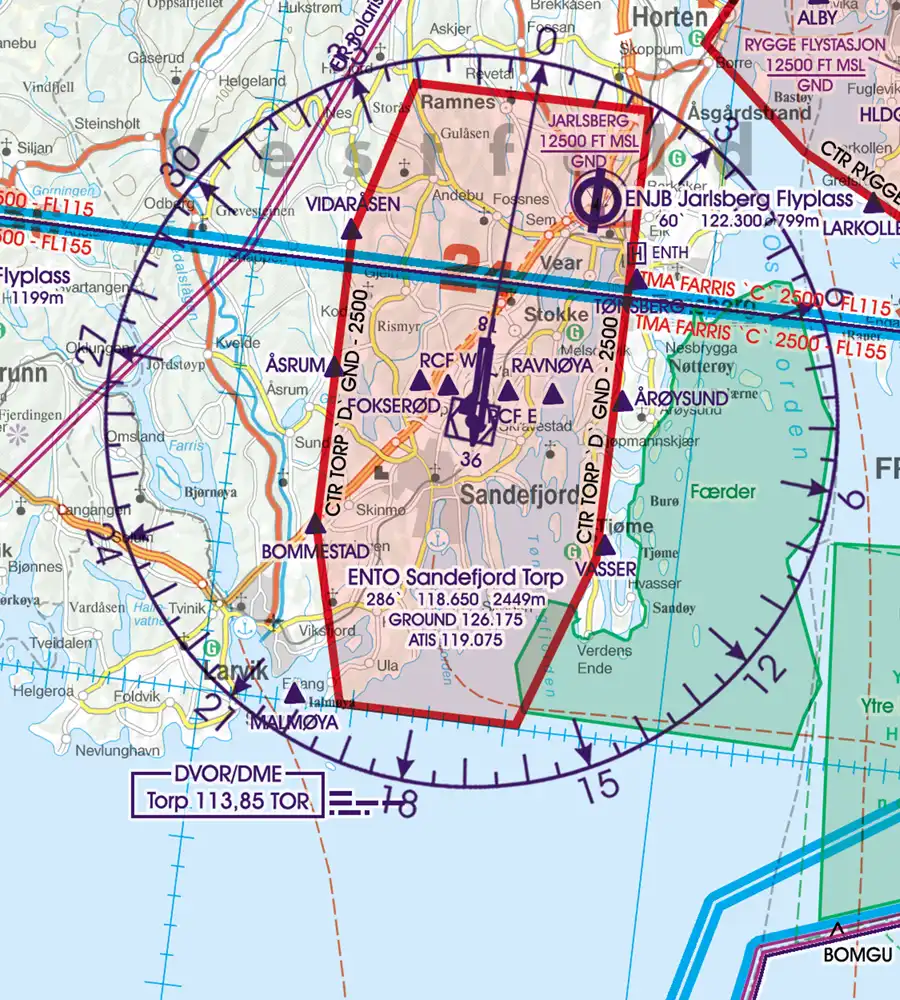

Rogers Data VFR aeronautical– ICAO charts have a very detailed representation of ATS airspace structures. They use a high-quality topographic map with shading and relief. This creates a dynamic 3D impression.

The charts include TMZ transponder mandatory zones, RMZ radio mandatory zones, airports, aerodromes and heliports with additional information, compulsory reporting points, reporting points on request, significant points (border crossing), Radio Navigation Aids with name, frequency and morse code.

Danger-, restricted- and prohibited areas, obstacles or group of obstacles and aerial sporting and recreational activities and areas with sensitive fauna. Furthermore, high-voltage powerlines are shown to increase situational awareness and flight safety in low-level operations. An isogonic line model with magnetic variation is included to support accurate navigation and heading corrections.

All Rogers Data VFR aeronautical charts are based on the latest aeronautical information from AIP and their supplements of CAA. They are based on the relevant regulations of ICAO Annex 4 and EU-Regulations.

Rogers Data Scandinavia VFR ICAO Aeronautical Chart

Current edition. Updated during the validity of the subscription.

Special features for this region:

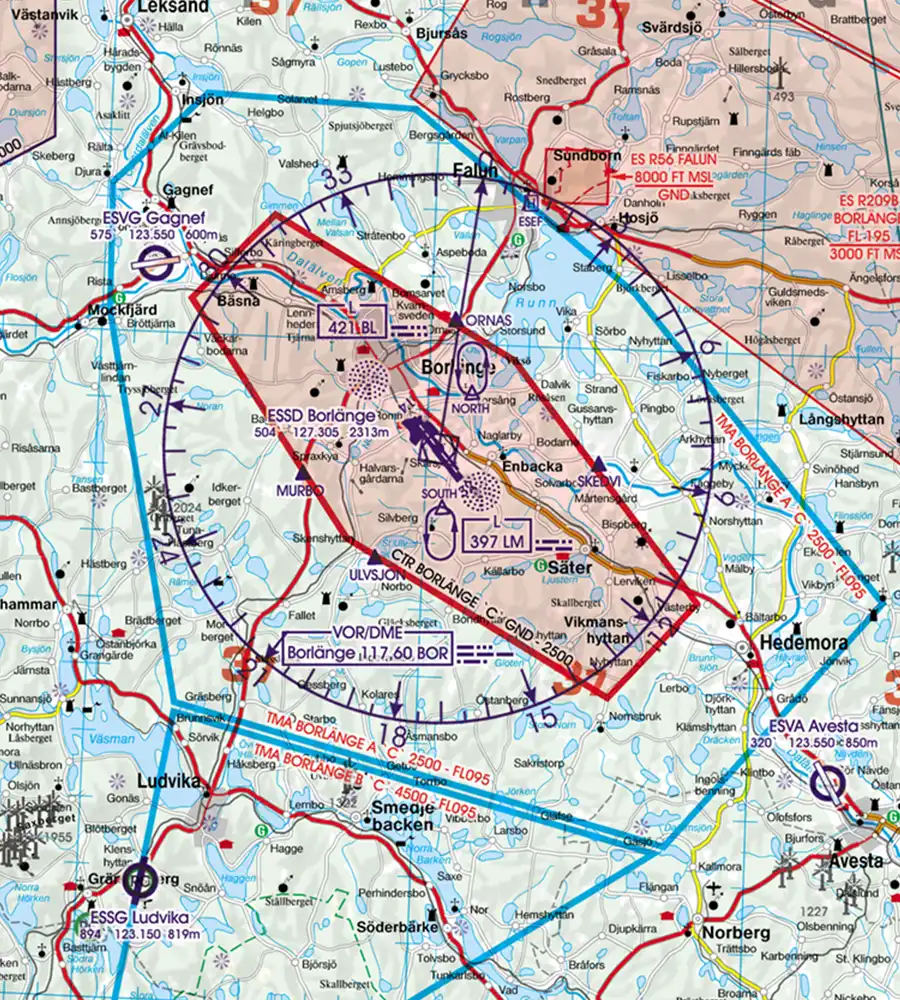

• CTR Control Zone
• HTZ Helicopter Traffic Zone
• Restricted areas
• Quarries and blasting sites acc. ENR 5.3
• Detailed presentation of P, R and D areas
• Aerial sporting and recreational activities
• Areas with sensitive fauna
• VOR radio navigation aids
• RMZ Radio Manatory Zone
• TIA Traffic Information Area
• TIZ Traffic Information Zone
• TMA terminal control area

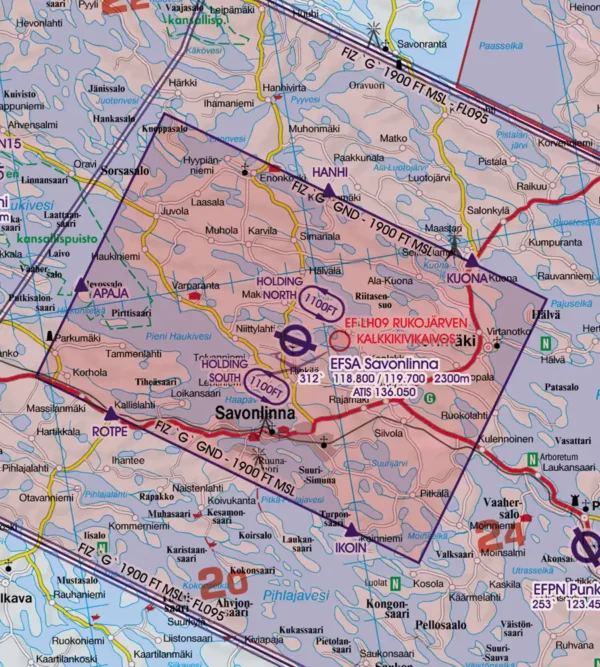

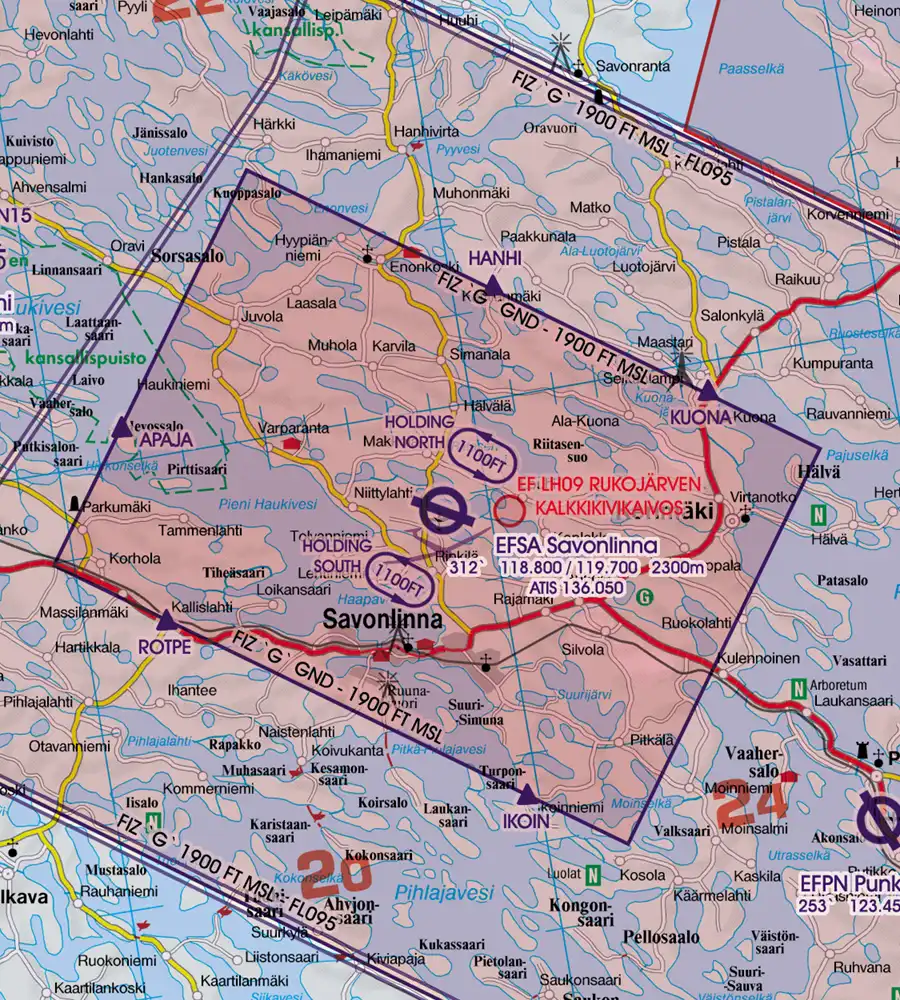

• Visual approach procedures of major aerodromes
• Windmills & wind turbines
• Windmills & wind turbines offshore

All Rogers Data VFR charts are designed to the following criteria:

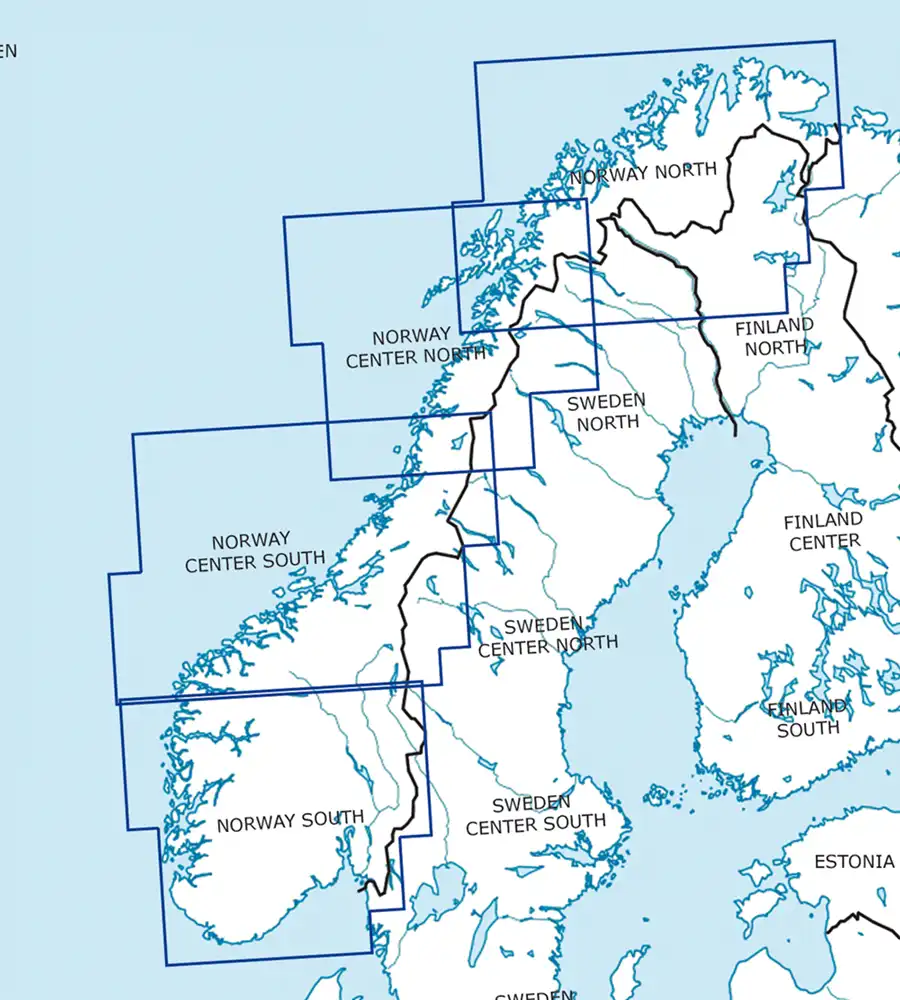

• Scandinavia aeronautical chart on a scale of 1:500.000
• According to ICAO Annex 4; EU Commission Regulation; AIP
• Clear representation of the ATS airspace structure
• Detailed highly sophisticated terrain map with shading and relief
• Airports, aerodromes and heliports with additional information
• Radio Navigation Aids with name, frequency and morse code
• Compulsory reporting points, reporting points on request, significant points (border crossing)
• Danger- and restricted areas
• Obstacles or group of obstacles
• Minimum Grid Area Altitude
• Isogonic line model with magnetic variation
